10'' Coolmay HMI 4 Wire TFT Touch Screen 1024*600 Modbus RS485 Ethernet Display

Shenzhen Coolmay Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

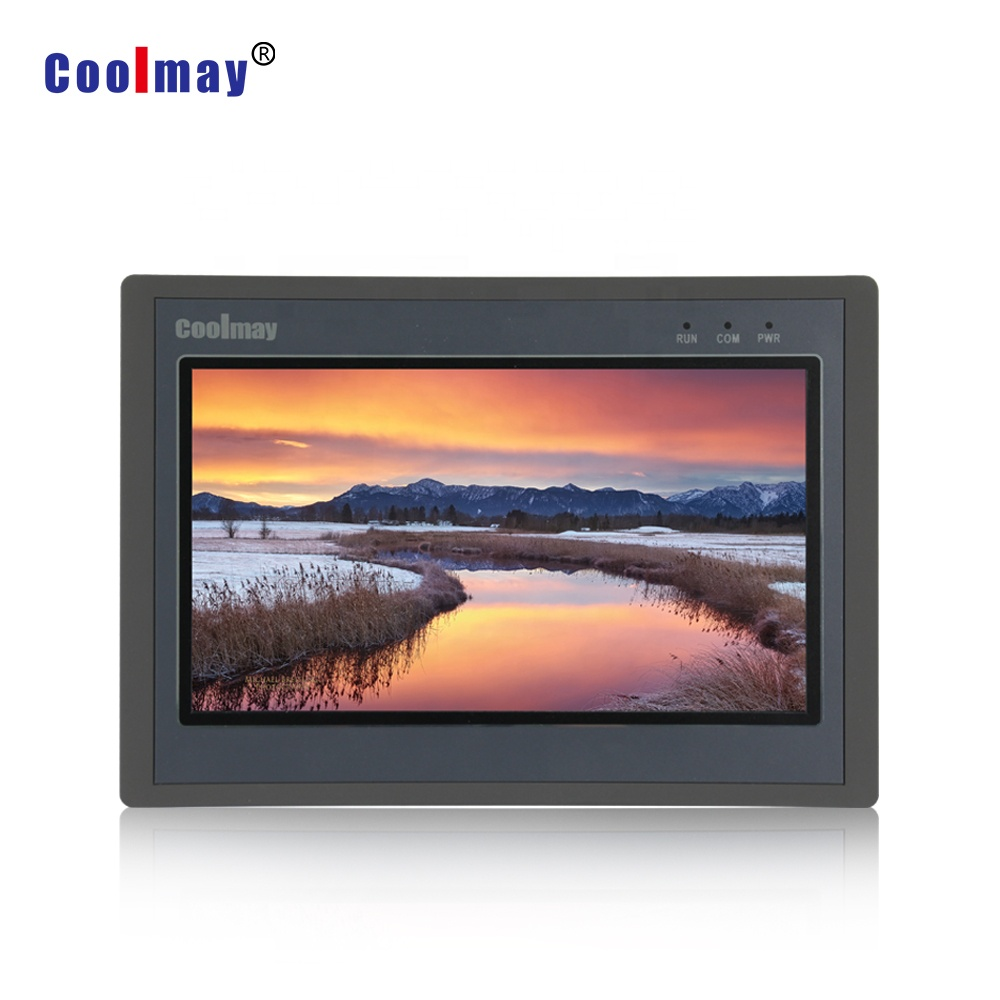

10'' Coolmay HMI 4 Wire TFT Touch Screen 1024*600 Modbus RS485 Ethernet Display

  • 1
  • 2

Brand Name : Coolmay

Model Number : TK6100FH

Certification : CE

Place of Origin : CHINA, GONGDONG

MOQ : 1 peice

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 15000 Units Per Week

Delivery Time : 3-8 works days

Packaging Details : carton

Voltage : DC 24V

Material : ABS, Plastic

Display size : 222*125mm

Display : 10.0" TFT

Contact Now

100% Manufacturer Coolmay 10" HMI 4-Wire TFT Touch Screen 1024*600 Modbus Rs485 Ethernet Display


PRODUCT DESCRIPTION

Feature:

  • Resistive touch panel with high precision and reliability
  • 60,000 TFT true color display,all series support vertical display
  • Supports any-formatstatic images and GIF animation
  • Supports al fonts in Windows
  • Provide a large number of vector libraries and component libraries
  • Button sound and alarm sound can beset by yourself
  • Convenient drawing compon

Model TK6100FH
Display Display 10.1" TFT

Resolution

(pixels)

1024*600
Brightness 300cd/m²
Contrast ratio 400:1
Backlight LED
Backlight time 60,000 hours
Display color 65536 colors
Touch type 4-wire resistive panel
Storage ROM NOR Flash 16MB
RAM 64MB (HMI when stores historical data, optional ferroelectric is required)
CPU 32bit CPU 408MHz
Interface Interface

- Download port: Type-B, RS232, RS485

- COM ports: RS232, RS485

Protocol RS232/RS485 supports MODBUS, free port and common PLC communication protocol
Calendar Yes
Input Voltage 12-24VDC±10%<150mA @ 24VDC
Consumption 145mA/24V
Protection Class IP65 (front panel)
Temperature Ambient environment: 0~50℃ | Storage environment: -20~70℃
Humidity 20%~90% RH
Certification CE
Software

CoolMay TPWorks HMI programming software

Detailed info. refer to Coolmay TK Series HMI Programming Manual CoolMay TK HMI User Manual

  1. Company Advantages

    1. Production equipment
    Coolmay, which has 15 years of expertise in automation solutions for various industries, has 6000 square meters of production space and 10 production lines, many imported high-end smt placement equipment and testing equipment, and its monthly output can reach 50,000 units.

    2. Certification
    Coolmay has passed the ISO9001 quality management system certification and the national high-tech enterprise certification. Its products have obtained a number of utility model patent certificates and invention patents, and have repeatedly won many awards such as "Technical Innovation Award" and "Innovative Product Award".

    In addition, all Coolmay products have passed CE & RoHS certification.

    3. Raw materials and accessories
    The raw materials and parts used by Coolmay are the best: the CPU adopts imported 32-bit industrial-grade chips, the PCB board with three anti-paint protection, the relays and transistors imported from the United States, and the input and output with photoelectric isolation protection.

    4. Good service
    Coolmay is an original manufacturer of OEM&ODM PLC and HMI, which can meet various needs of customers. All our products have undergone 5-step strict quality control and 48 hours of aging. The products are of high quality, with a guarantee of up to 18 months and a simple return policy.

    Provide Free Technical Support, learning tutorials and video tutorials.
    Provide Free HMI programming Software and PLC programming software.

  2. 10'' Coolmay HMI 4 Wire TFT Touch Screen 1024*600 Modbus RS485 Ethernet Display
