Passive NPN Input Programmable Logic Controller Module 2AI PID Auto Tuning

Name: Passive NPN Input Programmable Logic Controller Module 2AI PID Auto Tuning
Brand: Coolmay
Price: 86 USD

China Passive NPN Input Programmable Logic Controller Module 2AI PID Auto Tuning wholesale

Brand Name : Coolmay

Model Number : CX3G-32MT(-2AD-485/232)

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD 86-145 per piece

Payment Terms : T/T, Western Union

Supply Ability : 100000 PCS per month

Delivery Time : 5-7 working days

Packaging Details : Cartoon box

Software : Compatible with GX WORKS 2

Language : Ladder

Program capacity : 32K

Retentive register : 32K

Analog I/O : 2AI

Digital I/O : 16DI/16DO

Digital input : Passive NPN

Installation : Fixed hole installation and DIN-Rail (35mm )

Contact Now

Passive NPN Input Programmable Logic Controller Module 2AI PID Auto Tuning

32K Program Capacity Industrial Control PLC Support PID Auto-Tuning Passive NPN Input

Dimension	1309036mm
Cutout size	122*99mm
Installation	Fixed hole installation and DIN-Rail (35mm )
Features	Support interrupt, linear arc interpolation, PID auto-tuning. 32K program capacity, 32K retentive register
I/O level	Input: Passive NPN, public terminal isolated Relay output: Normally open dry contact
Digital I/O	16DI/16DO
DO type and load	Relay(MR) or transistor(MT) or mixed(MRT) MOS tube: 2A/point, 4A/4 point COM; Transistor MT: 0.5A/point, 0.8A/4 point COM, 1.6A/8 point COM; MR: 2A/point, 4A/4 point COM, 5A/8 Click COM.
High speed counting	Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10 KHz
High speed pulse	8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz
High speed pulse	High-speed counting + high-speed pulse < 480KHz
Analog I/O (optional)	2AI
AI type (optional)	Type E/E_/K/K_/S/S_/T/T_/J/J_ thermocouple / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ 0~10V/ 0~5V/ 0-20mA/ 4-20mA/ -5V~5V/ -10V~10V
AO type (optional)	0~10V/ 0-~5V/ 0~20mA/ 4~20mA -5~5V/ -10~10V (2DA for 1 minus voltage)
Default	1 Mini type B USB programming port, 1 RS232 programming port (Interface terminal is mouse female port with 8 holes), 2 RS485 COM ports
Optional	Default 2 RS485 COM ports can be customized as 1 RS485, 1 RS232 COM ports, or 1 RS485 COM port, 1 CAN (2.0A/B), or 1 RS232 COM port, 1 CAN (2.0A/B)
Software	Compatible with GX WORKS 2

Main features:
1. Highly integration.At most 40Dl40DO (digital type can be customized transistor,relayor mixed),16Al (analginput can be customized temperature, current, voltage or mixed)/8AO (analog output can be customizedcurrent, voltage or mixed).
2. Comes with 2PLC programming ports: Mini typeB usb port(speed of reading and downloading is more faster)and RS 232(8-hole mouse head female seat), normally have 2RS 485 ports,both RS 232 and CAN are optional.
3. Support mult-channels high-speed counting and high-speed pulse. High-speed counting normally single-phase6 6OKHz orAB(Z)phase 2 6OKHZ+110KHz. High-speed pulse normally Yo-Y3 each channel100KHz,Y4-Y7 each channel 10KHz, acceleration and deceleration individually.The total amount of HSC and HSPoutput can not exceed 480KHz.
4. Support special enaryption. Setting 12345678 as password can thoroughly prevent the data from being read.(Attention : Only supports 8-bit password encryption)
5. 32K steps of program capacity, 32K power-failed holding registers which support interrupting, linear arcinterpolation and PID auto-tuning.
6. Use 5.0mm pitch pluggable terminals for easy wiring; use DlN rail (35mm wide) and mounting holes forinstalling.
7. Super function.Compatible with FX3G/FX2U/FX3S series PLC, operation speed more fast.

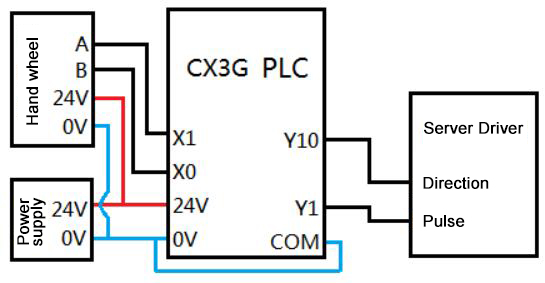

Hand wheel connection:

Passive NPN Input Programmable Logic Controller Module 2AI PID Auto Tuning

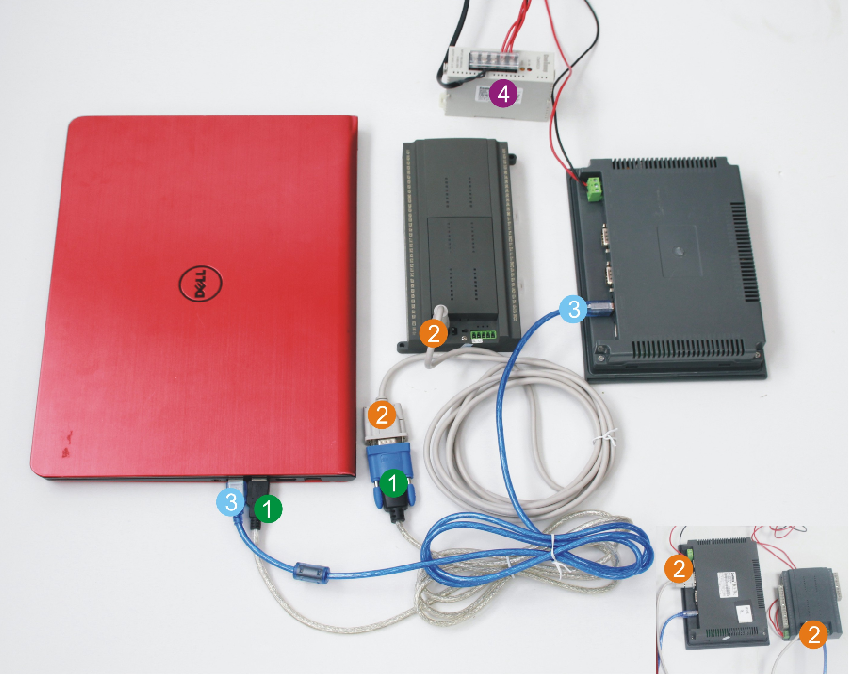

Wiring:

1. USB-232 serial port cable 2. PLC download cable
3. Mini type-B PLC download cable
(Note: Functions of cable 1 and 2 = Functions of cable 3)
4. HMI programming cable
5. Power supply (DC24V)

Passive NPN Input Programmable Logic Controller Module 2AI PID Auto Tuning
